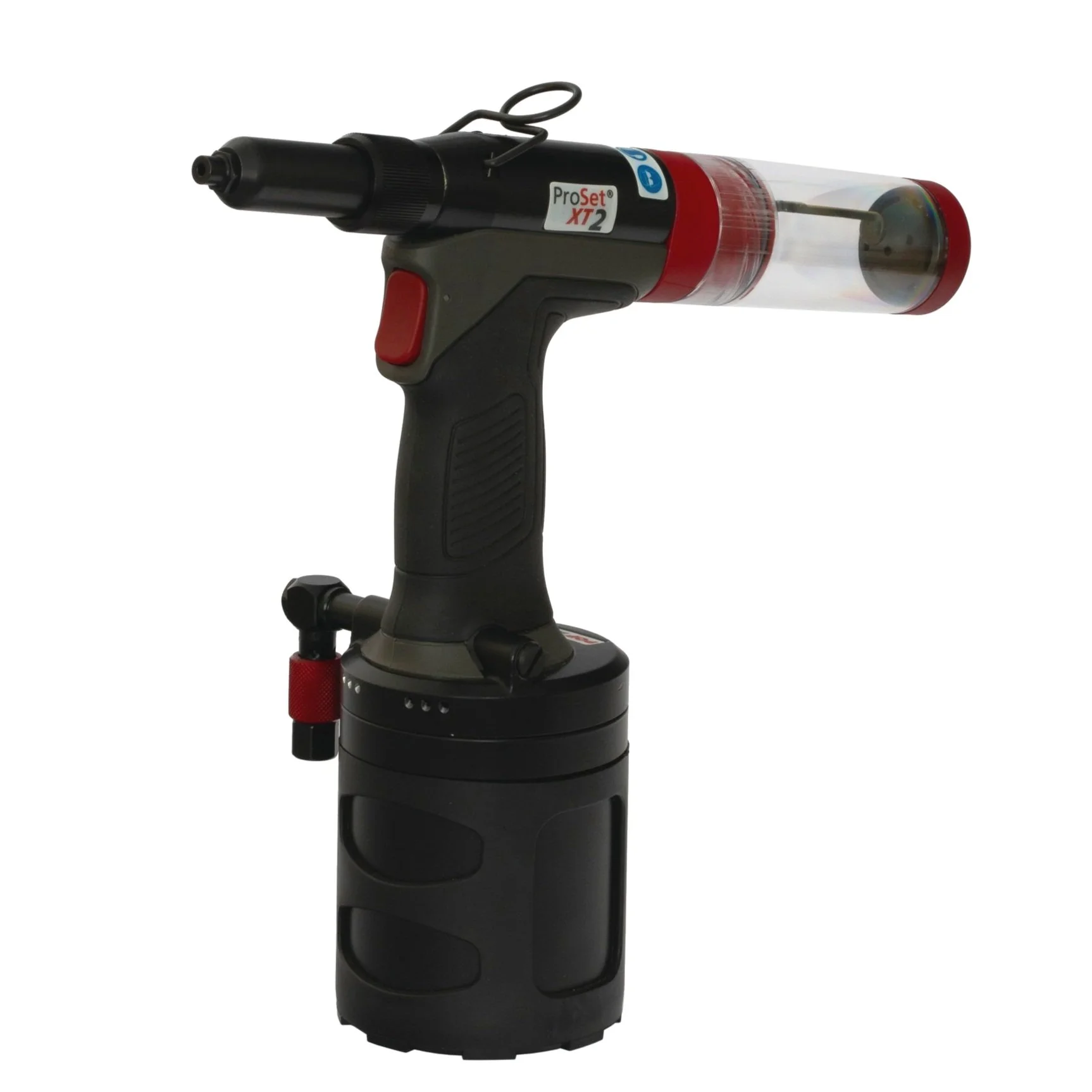

Stanley ProSet XT2 3-5mm Hydro-Pneumatic Riveter

£605.00

The ProSet® XT2 sets a new standard for pneumatic rivet tools. Designed specifically to set a wide range of breakstem rivets, this tool delivers 8.9 kN of pull force with an outstanding force-to weight ratio of 7.18kN/kg. The innovative, ergonomic design ensures maximum user comfort and efficiency.

The ProSet® XT2 will set 3.0 & 3.2mm (1/8"), 4.0mm (5/32"), 4.8mm (3/16"), and 5.0mm diameter rivets in all materials including high-strength structural stainless steel rivets. The ProSet® XT2 will also place up to 7.0mm sealing plugs with an additional nose assembly.

The ProSet® XT2 sets a new standard for pneumatic rivet tools. Designed specifically to set a wide range of breakstem rivets, this tool delivers 8.9 kN of pull force with an outstanding force-to weight ratio of 7.18kN/kg. The innovative, ergonomic design ensures maximum user comfort and efficiency.

The ProSet® XT2 will set 3.0 & 3.2mm (1/8"), 4.0mm (5/32"), 4.8mm (3/16"), and 5.0mm diameter rivets in all materials including high-strength structural stainless steel rivets. The ProSet® XT2 will also place up to 7.0mm sealing plugs with an additional nose assembly.



Performance

  • High force-to-weight ratio

  • Quick-disconnect nose housing and jaw case for easy maintenance and service

  • Clear quick-release mandrel collector bottle reduces downtime

  • Integral exhaust valves for fast setting cycles

Ergonomic

  • Class-leading lightweight construction with balanced handling

  • Comfortable, low activation-force trigger

  • Adjustable vacuum exhaust direction

Economy & Safety

  • Air isolation switch during MCS removal

  • On/Off, left- or right-swivel air fitting minimizes air consumption and noise and conserves energy

  • Rubber base designed to avoid damage

  • Latest technology lip seals maximize re-priming intervals

  • Piston bearing rings ensure maximum robustness and tool life

  • Pulling Force: 8.9kN
    Weight: 1.32kg
    Cycle Time: 0.6 Seconds
    Stroke: 20mm
    Sound Power (a): 89.5dB
    Sound Pressure (c): 78.9dB
    Vibration (a): 0.74m/s2
    Vibration (k): 0.37m/s2

  • Instruction Manual
